Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.

Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.

What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.

Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.

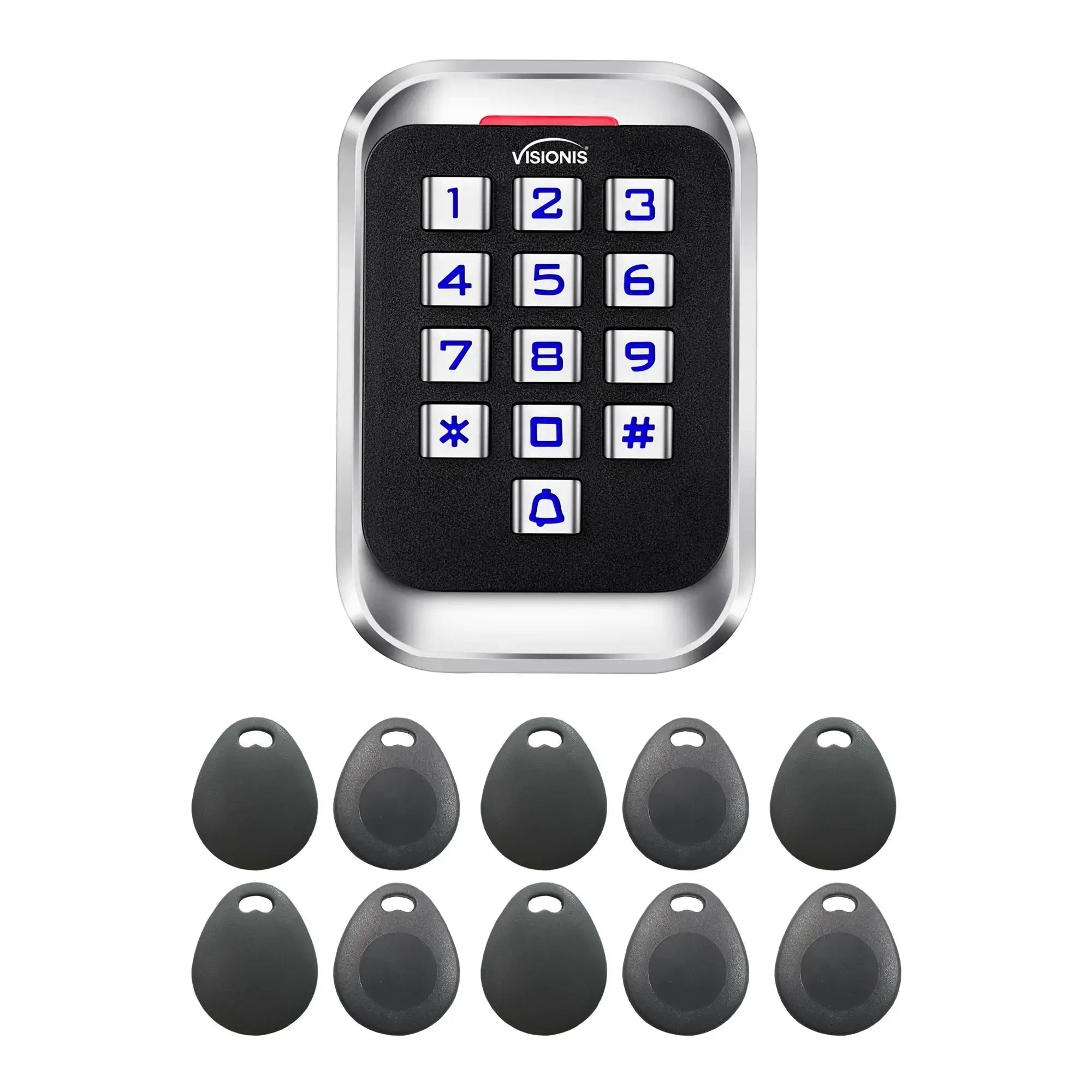

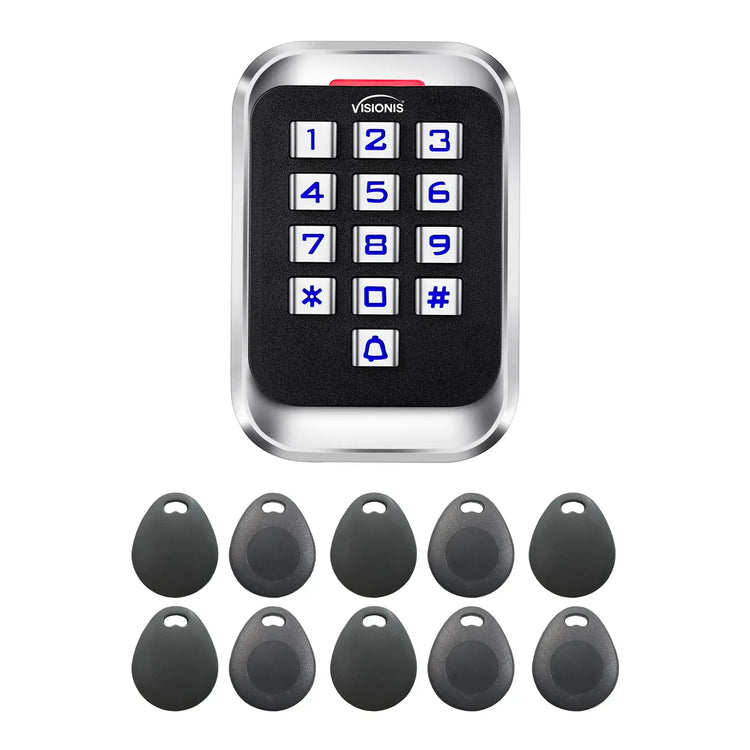

standalone keypad access control with key tags - FPC-5684

Mini controller for wiegand standalone keypad access control - VIS-MINI-CNTRL

Outdoor Access Control Keypad, Visionis VIS-3004, standalone anti-vandal metal design, wide layout, EM cards compatible

Mini controller for Wiegand card readers and keypads - VIS-MINI-CNTRL Visionis

standalone access control system FEATURES VIS-3004 Visionis

standalone access control system REVIEWS VIS-3004 Visionis

1 door controller for stand alone card reader dimensions - VIS-MINI-CNTRL

Dimensions Waterproof keypad for access control, Visionis VIS-3004, standalone, anti-vandal, Wiegand 26, EM card support

Standalone access control keypads, Visionis VIS-3004, IP68-rated waterproof keypad for indoor and outdoor use

Weatherproof keypad, Visionis VIS-3004, IP68-rated, wide design, indoor/outdoor security access control

LED indicators Visionis VIS-3004 Security Access Control Keypad, IP68-rated, waterproof and weatherproof, indoor and outdoor use

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

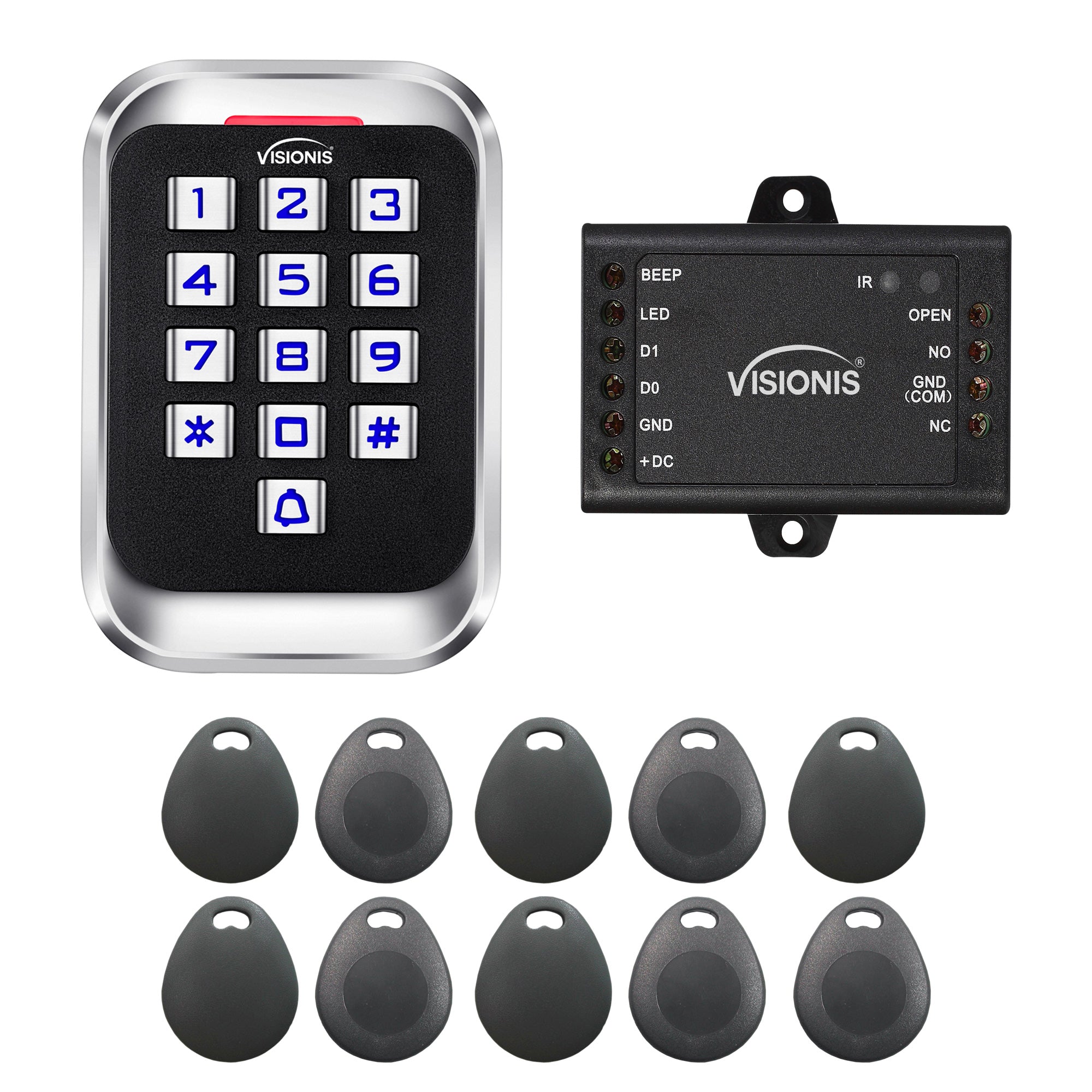

Kit Includes:

(1)

(10)

VIS-3004: Standalone Access Control Keypad and Card Reader. Waterproof Rated IP68 Metal Anti Vandal. Wiegand 26. Wide Design.

VIS-MINI-CNTRL: 1 Door Controller for Access Control Systems with No Software. Up to 1,000 users

VIS-KEYTAG: Contactless RFID Proximity Entry Key Fob. 125kHz TK4100 26 Bit. Key Tag for Keypad Reader Access Control.

Description

IMPORTANT:

These products do not include a power supply
Since this is a standalone system with no software, it is recommended to keep a record of all personnel and their assigned user ID, key code, key card, or key tag.
Professional installation is recommended.
For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.

Main Features

Operation

Standalone (No Software) and Wiegand 26

Applications

Outdoor and Indoor

Card Reading Distance

2 - 3 cm (0.78 - 1.18 in.)

Standalone access control keypad VIS-3004 Visionis

Durable and Weatherproof Design for Any Environment

The VISIONIS VIS-3004 is buil to withstand the toughest conditions, featuring an IP68 waterproof rating that makes it ideal for both indoor and outdoor installations.

Its sturdy metal construction provides anti-vandal protection, ensuring longevity and reliability in high-security areas like office buildings, warehouses, and residential complexes.

Standalone access control system VIS-3004 Visionis

Enhanced Security with Remote Credential Storage

Even if the keypad is tampered with, access remains secure, as the mini controller VIS-MINI-CNTRL is the one managing and securing the locking mechanism. This setup ensures that sensitive information is never stored on the external reader, preventing unauthorized access attempts.

Multiple Access Methods for Maximum Flexibility

This standalone access control system supports multiple access modes, including card, PIN code, or a combination of both.

The independent code feature allows users to gain access without needing a card, adding convenience for temporary or frequent visitors.

Standalone access control keypad Wiegand VIS-3004 Visionis

Standalone or Integrated Access Control with Wiegand 26 Compatibility

The VISIONIS VIS-3004 functions as a standalone keypad or seamlessly connects to a central access control panel via Wiegand 26 input/output compatibility.

This flexibility ensures easy integration with existing security systems while supporting both local and centralized management for enhanced access control.

Characteristics

Model No. VIS-3004:

Supports up to 2,000 users. (If connected to the mini controller VIS-MINI-CNTRL, the capacity is limited to 1,000 users)
Input voltage: DC 12V
Idle current: ≤25mA
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.)
Card Frequency: 125KHz for EM // 13.56MHz for MFR
Card Transmission Format: Wiegand 26
Keypad Transmission Format: 4bit, 8bit and Virtual card number
Operating Temperature: -45°C~55° C (-49°F ~ 131°F)
Operating Humidity: 0%~95%
Product Size: 118Lx81Wx26H (mm) - 4.64Lx3.18Wx1.02H (in.)
Protection Level: IP68 - No ingress of dust; complete protection against contact (dust tight), and waterproof
Support external wired doorbell

Model No. VIS-MINI-CNTRL:

User Capacity: 1,000 (Common user: 989, Visitor user: 10, Authorized user: 1)
Operating Voltage: 12V DC
Idle Current: < 100mA
Active Current: < 150mA
Wiring Connections: Relay output, exit button, Wiegand input
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface: Wiegand 26~44, 56, 58 bits
Operating Humidity: Indoor
Environment: 0 ~ 90%RH
Physical: ABS Shell
Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight: 40g
Shipping Weight: 100g

Model No. VIS-KEYTAG:

EM proximity key tag
Frequency: 125kHz passive key tag
Memory: 128 bit
Read Range: 1 - 10 cm (0.39 - 3.93 in.)
Dimensions: 37 x 30 x 8 mm (1.46 x 1.18 x 0.31 in.)
Material: ABS
Operating Temp.: -40°C to +85°C (-40°F to +185°F)
Each tag has a unique pre-assigned code (8 digit number) printed on the back

Description

IMPORTANT:

These products do not include a power supply
Since this is a standalone system with no software, it is recommended to keep a record of all personnel and their assigned user ID, key code, key card, or key tag.
Professional installation is recommended.
For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.

Product FAQs

Can it be programmed to allow temporary access codes?

Yes, it can be programmed to allow temporary access codes.
Does it support using both cards and keycodes for access?

Yes, it supports using both cards and keycodes for access. The keypad allows for three modes of entry: entering a pin code, using a proximity card, and/or using a proximity key tag.
What security features does it have to prevent unauthorized access?

The standalone keypad offers anti-tamper alarm that activates after illegal tear down.
Is its construction truly weatherproof and durable?

Our device is IP68-rated, meaning it is completely dustproof and water-resistant, making it suitable for both indoor and outdoor use.
Can its access codes or credentials be easily changed?

Yes, you can easily delete or change your credentials when you need to.
Is it compatible with other access control system components or with third-party access control systems?

Yes, it’s compatible with the majority of commercially available systems. Please review the product’s datasheet to find its spec.
Can it change how long the door stays open?

Yes, the relay timer can be adjusted on the keypads. You can program your delay from 0 to 99 seconds.

Download Datasheets and Manuals of this product

VIS-3004

VIS-MINI-CNTRL

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Standalone Access Control Keypad and Card Reader VIS-3004. Waterproof Rated IP68. Wiegand 26. Wide Design. No Software + Mini Controller + Pack Of 10 Proximity Key Fobs - FPC-5684 Kit Visionis

Translation missing: en.products.product.sku:FPC-5684

UPC Code: 614961170063 Weight: 2.0 lb

Includes a Mini Controller. Pairing your keypad with a mini controller keeps user credentials secure inside a protected area, preventing tampering or breaches.
Waterproof and weatherproof (IP68 Rated). For indoor and outdoor use.
Card Reading Distance: 2 - 3 cm (0.78 - 1.18 in.).
Card Frequency: 125KHz for EM // 13.56MHz for MFR.

Regular price: $104.67
Sale price: $104.67
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
