Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

Double Maglock. Up to 600 lbs VIS-600D-LED Visionis

Double Door Maglock Features VIS-600D-LED Visionis

Double door maglock. Up to 600 lbs VIS-600D-LED Visionis

Double Door Magnetic Lock. Up to 600 lbs Dimensions VIS-600D-LED Visionis

VIS-CP200 – 12 Volt 2Amp Power Supply Transformer, UL Listed

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

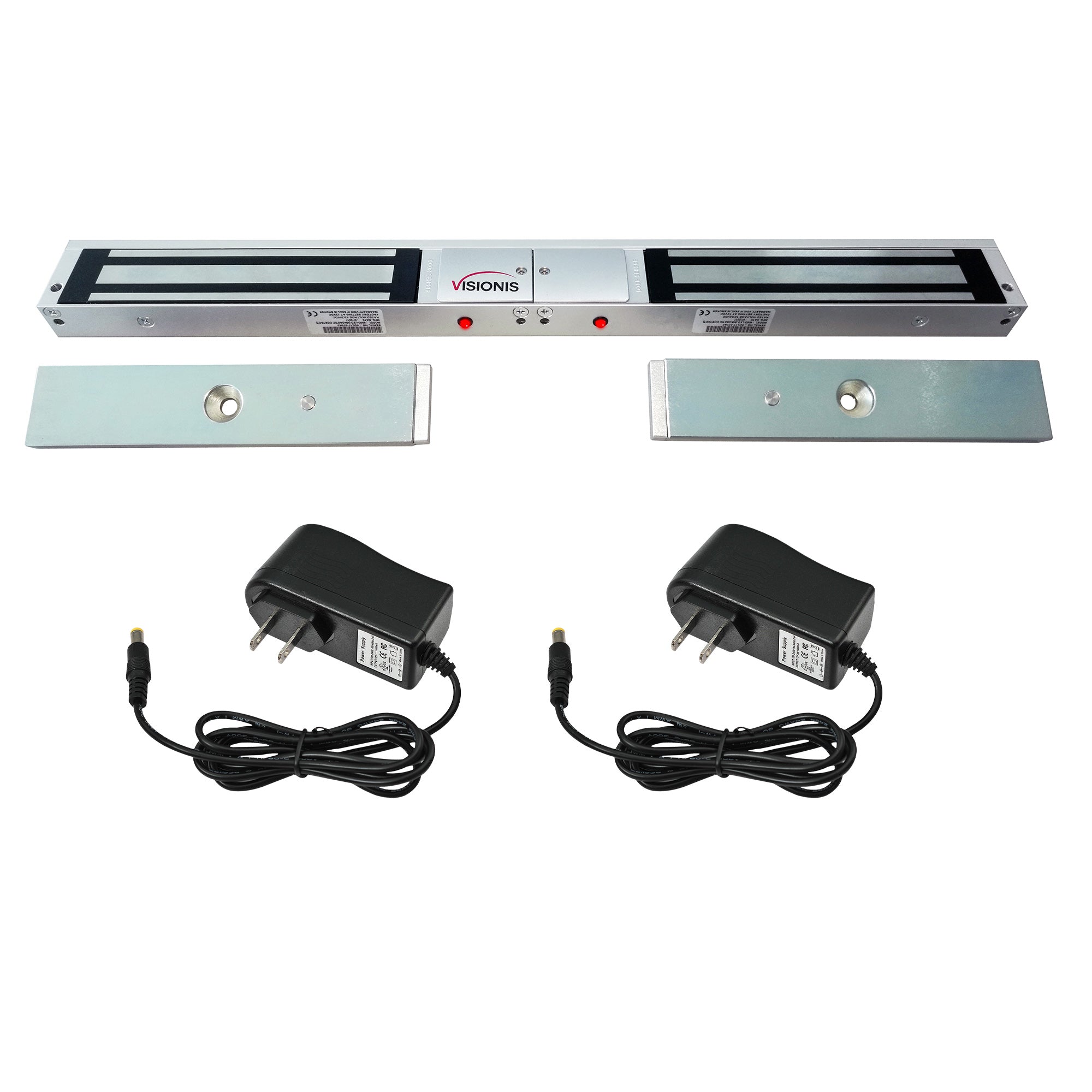

Kit Includes:

(1)

(2)

VIS-600D-LED: Double Door Maglock 600lbs With LED Sensor

VIS-CP200: 12 Volt 2Amp Power Supply Transformer, UL Listed

Description

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Main Features

Holding Force

Up to 600 lbs x 2 (272 kg x 2)

Voltage Input

12 VDC / 24 VDC

Applications

Indoor Only

Double Door Maglock

The VISIONIS VIS-600D-LED is designed to keep your double doors secure with a 600 lbs holding force per door (1,200 lbs total).

Whether you're securing a retail store, office, or commercial building, this lock provides strong and reliable protection, preventing unauthorized access with a firm electromagnetic hold.

LED Indicators

Built-in LED indicators provide real-time lock status, adding an extra layer of control and convenience.

RED = Maglock Released

GREEN = Maglock Locked

Double electromagnetic lock 600lbs holding force

Energy-Efficient and Safe

This double maglock runs on 12VDC or 24VDC, allowing flexibility in power setup. Its low power consumption makes it cost-effective for continuous use, while surge and spike protection and anti-tamper features ensure durability and long-term reliability.

Double door maglock for access control VIS-600D-LED Visionis

Works Seamlessly with Standalone Systems or Access Control Panels

The VIS-600D-LED can be used as a standalone lock with simple push-to-exit buttons, or it can be integrated into an advanced access control system.

When connected to an access control panel, it allows for keycard access, PIN codes, biometric readers, and remote monitoring, giving you complete control over who enters and exits.

Characteristics

Model No. VIS-600D-LED:

Size: 500Lx42Wx25H (mm) - 19.68Lx1.65Wx0.98H (in.)
Armature Plate Dimension: 180Lx38Wx11H (mm) - 7.08Lx1.50Wx0.43H (in.)
Holding Force: 600 lbs x 2 (272 kg x 2)
Input Voltage: 12 or 24VDC
Current: 12V/500mA*2 or 24V/250mA*2
Suitable: Wooden door, Glass door, Metal door, Fireproof door
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C ( 32~131° F)
Operating Humidity: 0~95% ( non condensing)
Weight: 3.8 kg (±1%) - 8.37 lbs

Model No. VIS-CP200:

Cable Length: 1.2 meters (4 feet)
Input Voltage Range: AC90V-264V
Input Frequency Range: 50Hz-60Hz
Output Voltage Range: DC12V+/-5%
Output Current: 2A
Output Power: 24 Watts
Output Ripple&Noise: ≤46MV
Output Efficiency: ≥79%
Environment Operating: -30°C~45°C 20%~90%RH
Environment Storage Temp.: -40°C~85°C 10%~95%RH
Product Dimension: 87*36.5*70mm (3.42x1.43x2.75in.)
Product Weight: 116g
Certificate: UL, CE, RoHS, FCC

Description

NOTE: This is a Fail Safe or Normally Close double door magnetic lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-600D-LED

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Double Door Maglock with 600 lbs (272 kg) of Holding Force VIS-600D-LED for Indoor Use + 2 Power Supplies - FPC-5379

Translation missing: en.products.product.sku:FPC-5379

UPC Code: 614961170414 Weight: 12.0 lb

Dual Voltage Selectable (12 VDC or 24 VDC)
Green/Red LED Indication for EM Lock Status
Magnet Dimensions: 500(L)x42(W)x25(T) mm - 19.68(L)x1.65(W)x0.98(T) in.
Armature Plate Dimension: 180(L)x38(W)x11(T) mm - 7.08(L)x1.50(W)x0.43(T) in.
