Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.

Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.Green = LockedRed = ReleasedOff = No input

Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.

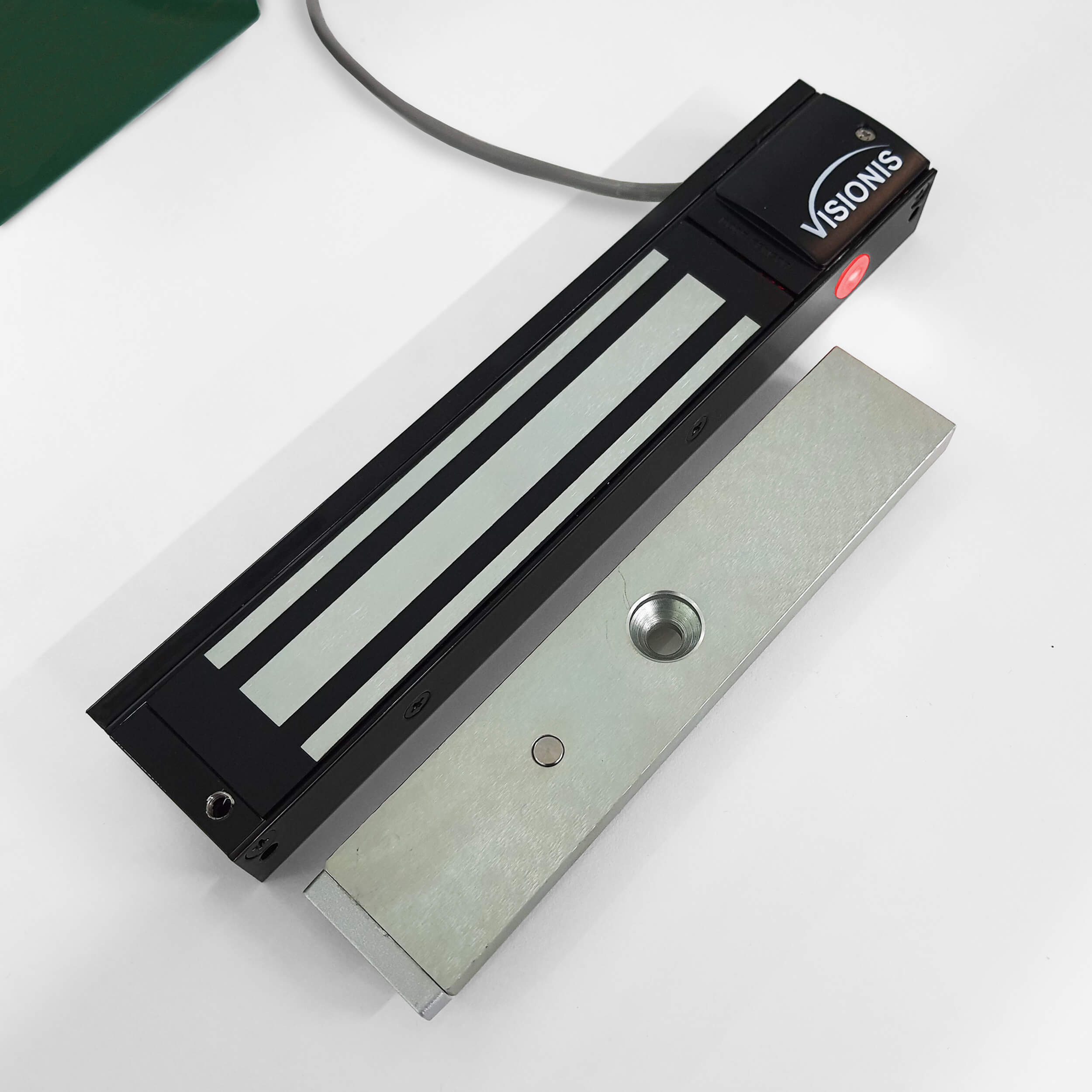

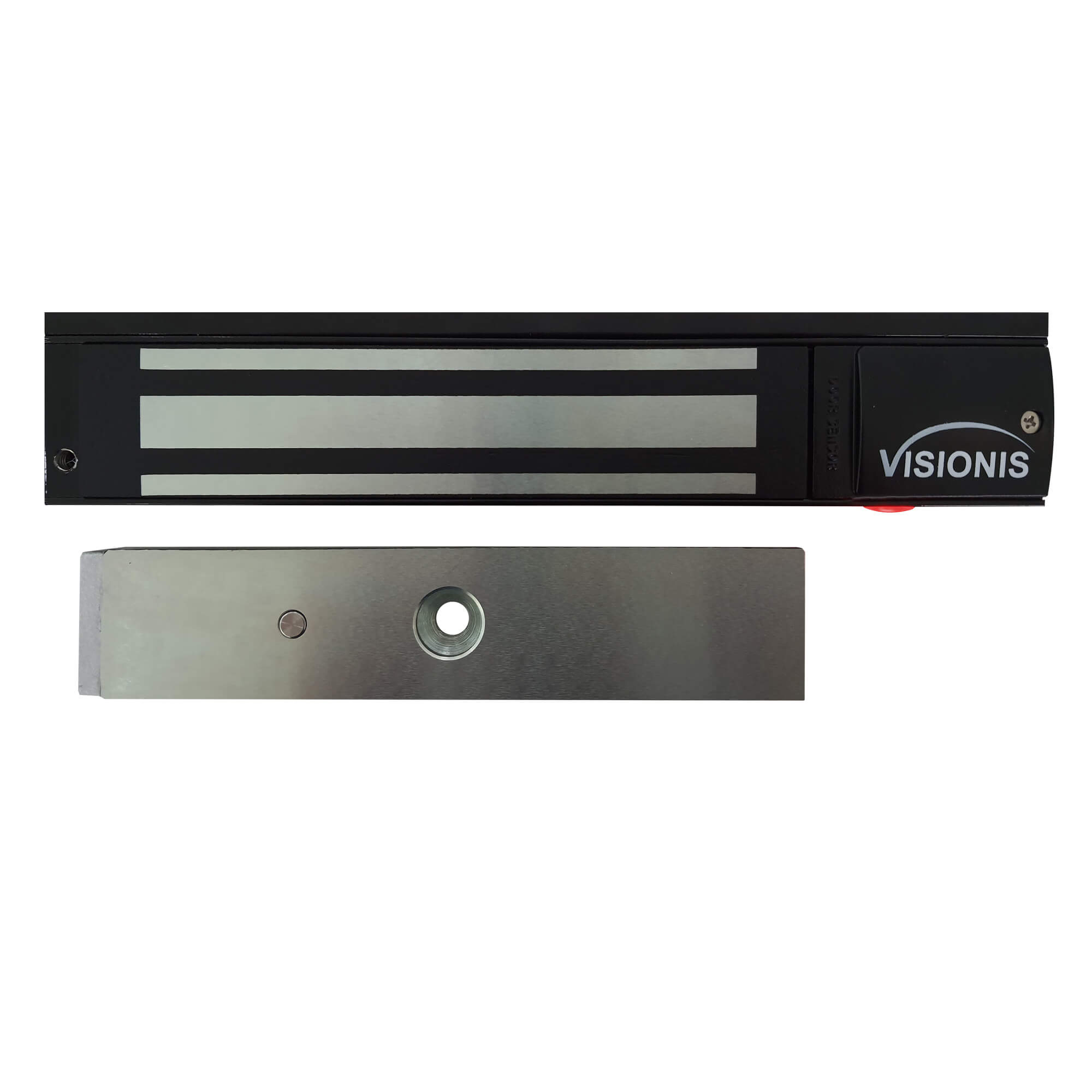

600lb Indoor Magnetic Lock with LED Sensor Black Color VIS-ML600LED-BL

600lb Indoor Maglock with LED Sensor Black Color VIS-ML600LED-BL

600lbs Magnetic Lock Features VIS-ML600LED Visionis

Looking for something slightly different? Check out these variations:

This PRODUCT has a 3 YEAR warranty with full access to tech support in the USA!

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Main Features

Holding Force

Up to 600 lbs (272 kg)

Voltage Input

12 VDC / 24 VDC

Applications

Indoor Only

Magnetic Lock for door access control 600lbs

Single Door Magnetic Lock

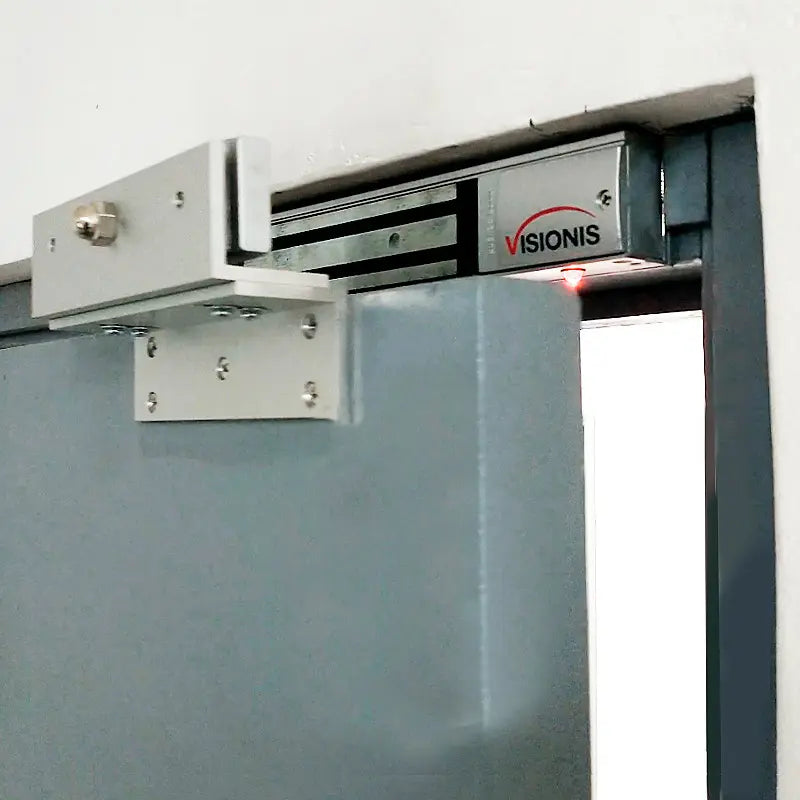

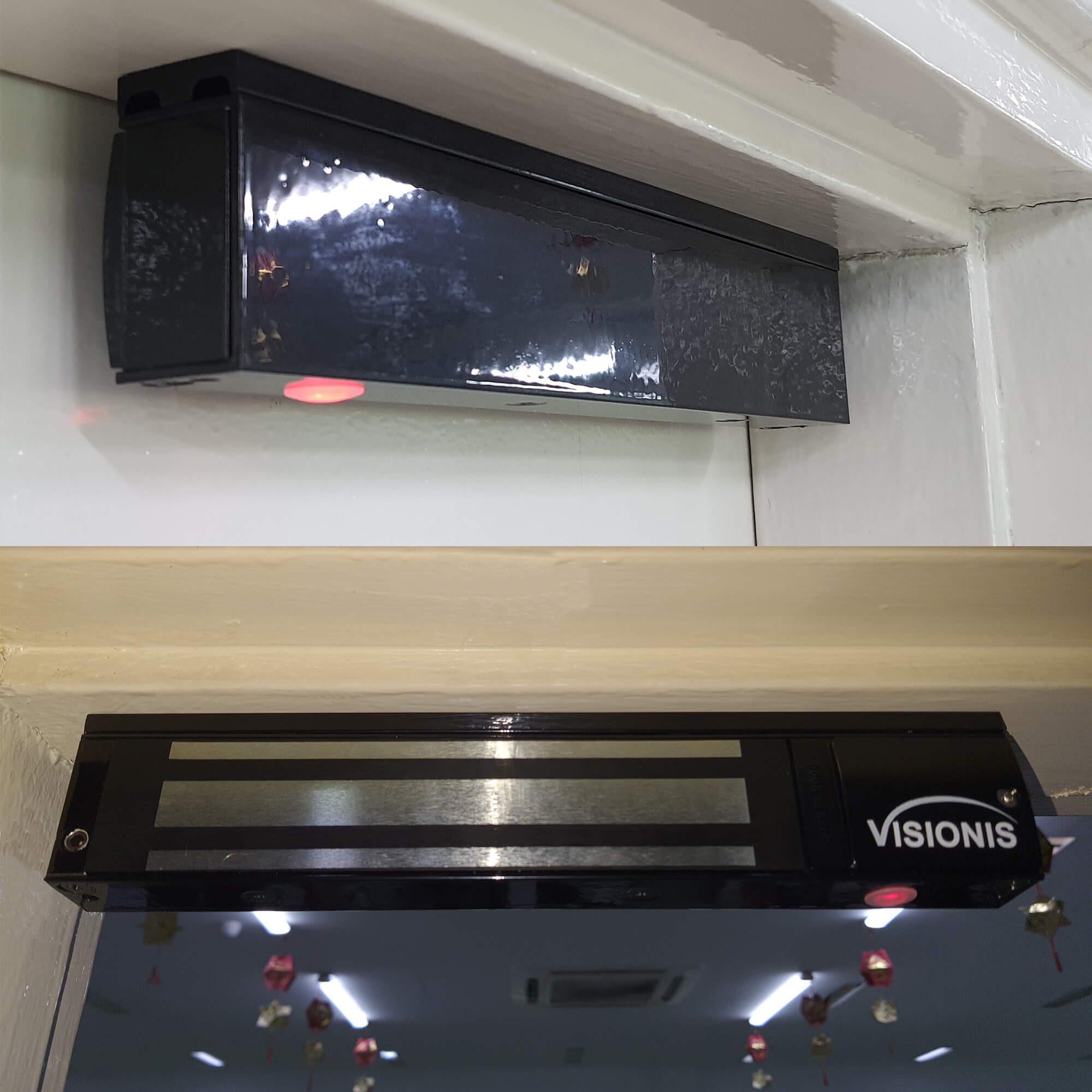

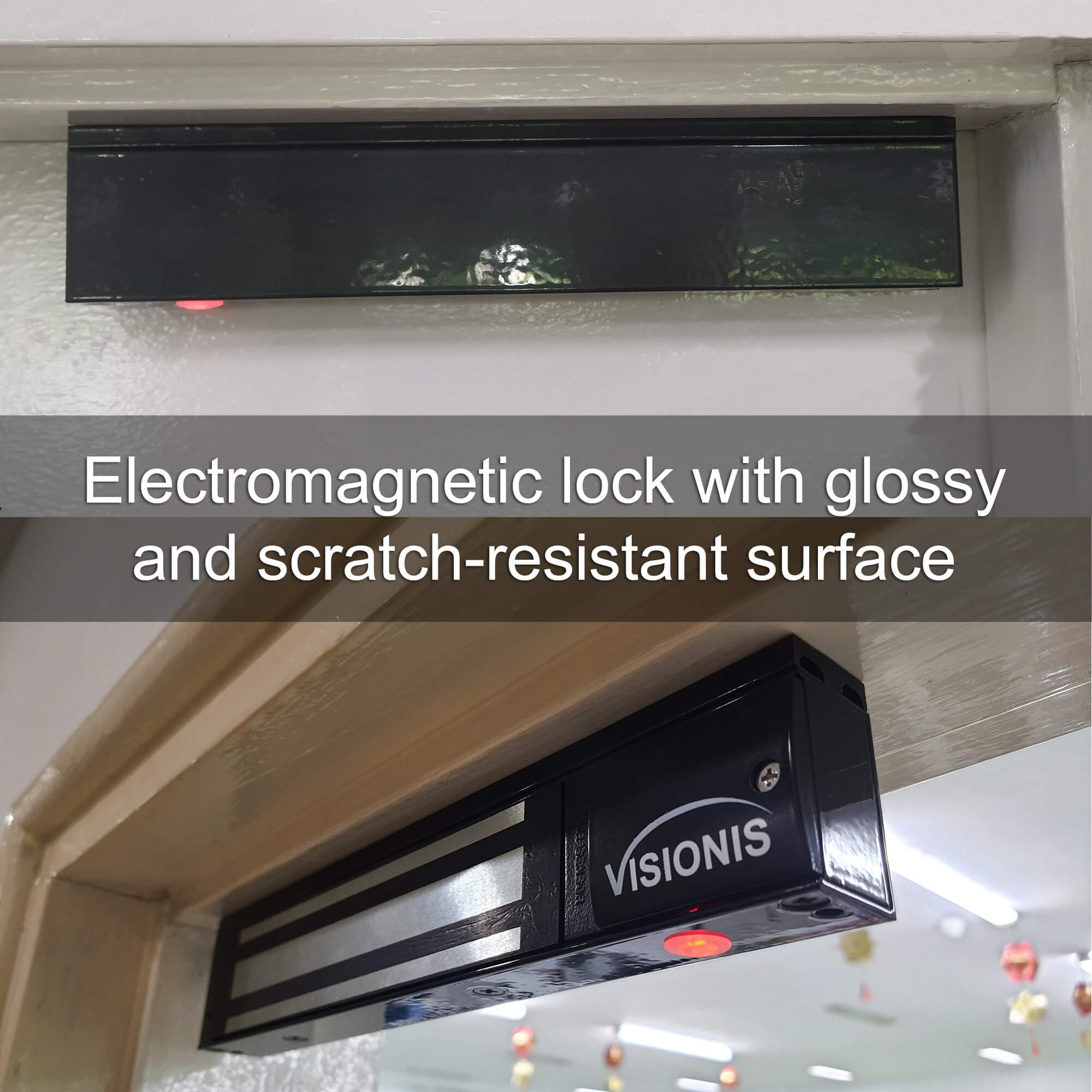

Maglocks are typically installed on the top corner of the door frame, with the magnet mounted on the frame and the armature plate attached to the door. This setup ensures a secure hold when the door is closed.

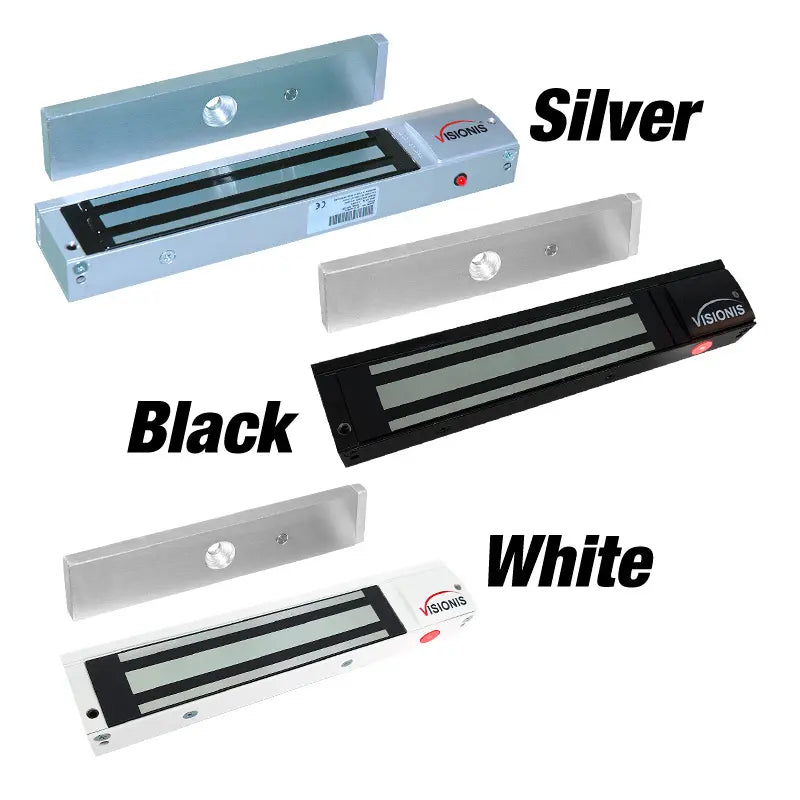

Indoor Magnetic Locks Colors Silver, Black and White

Multiple Color Options to Match Your Design

Our maglocks are available in silver, black, and white, allowing you to choose the perfect color to complement your door and overall decor.

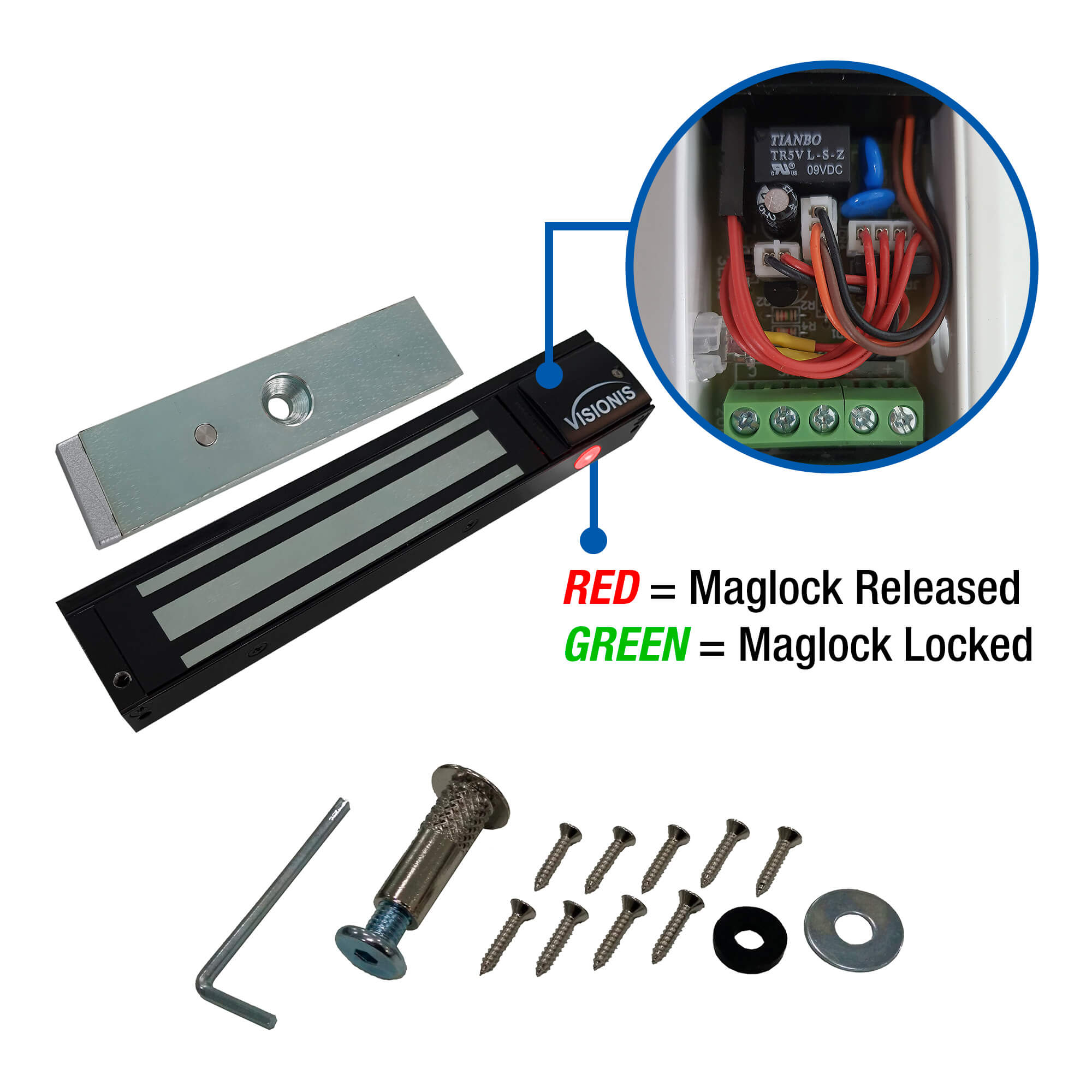

LED Indicators

Built-in LED indicators provide real-time lock status, adding an extra layer of control and convenience.

RED = Maglock Released

GREEN = Maglock Locked

Characteristics

Model No. VIS-ML600LED-BL:

Color: Black
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)

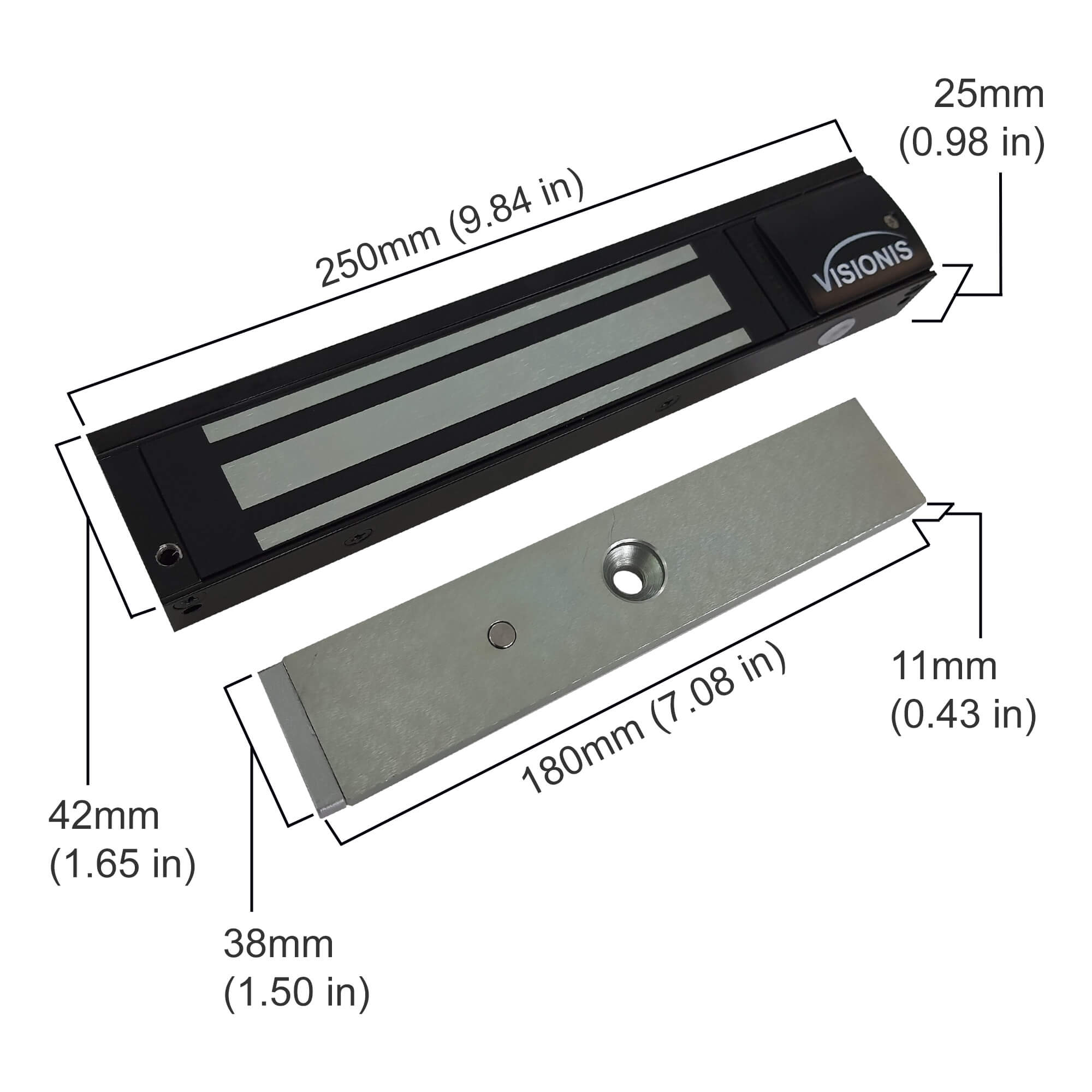

Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Description

IMPORTANT: This product doesn’t include a power supply. You can add this one to your purchase.

NOTE: This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.

Characteristics

Model No. VIS-ML600LED-BL:

Color: Black
Voltage Input: 12 VDC / 24 VDC
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Holding Force: Up to 600 lbs (272 kg)
Hall Effect Contact: SPDT rated 2A at 24 VDC
Magnetic Contact Rating: 28 VDC, 0.5A, 10W
Anti-Rust Surface Treatment: Blue Zinc Plating
Operating Temperature: 0~55° C (32~131° F)
Weight (Magnet): 1.1 kg (±1%)
Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
Green/Red LED Indication for EM Lock Status

Product FAQs

Do these locks work with both 12V and 24V power supplies?

Yes, each lock is compatible with 12V and 24V DC inputs, making it adaptable to different setups.
Will I be able to tell if the magnetic lock is working by looking at it?

Yes, the maglock has a bright-colored status LED. It provides a clear indication of the lock status, so you know at a glance if the door is secured.

Green = Locked
Red = Released
Off = No input
Can these magnetic locks be installed on glass/sliding doors?

Yes, they can be installed on glass doors and they can be installed on sliding doors. You might need a proper bracket.
What happens to the maglock when the power goes out?

This is a Fail Safe or Normally Close lock, meaning it will unlock without power. You can add a battery backup to keep the lock engaged in case of an outage.
Does the magnetic lock make a noise when unlocking?

The maglock makes a sort of clicking noise when it unlocks. If you want a louder noise to identify when the door unlocks, you can add a buzzer to your system.
Does it have a time delay or timer function?

No, it doesn't.
Is this magnetic door lock kit weatherproof?

This model is designed for indoor use only. For outdoor use, look for weatherproof-rated maglocks.

Download Datasheets and Manuals of this product

VIS-ML600LED-BL

LET US HELP YOU WITH YOUR PURCHASE

Feel free to contact our dedicated support team if you have any questions or if you're ready to place an order.

I Need Help

Visionis by Visionis

Indoor Magnetic Door Lock Black Color. Up to 600 lbs (272 kg) of Holding Force. 12 VDC / 24 VDC - VIS-ML600LED-BL Visionis

Translation missing: en.products.product.sku:VIS-ML600LED-BL

UPC Code: 718910359742 Weight: 7.0 lb

Holding Force: Up to 600 lbs (272 kg)
Current Draw: 12V / 500mA ; 24V / 250mA (±5%)
Green/Red LED Indication for EM Lock Status
This is a Fail Safe or Normally Close lock, meaning it will unlock without power.

Regular price: $48.41
Sale price: $48.41
Regular price

Shipping calculated at checkout.

In Stock

Quantity:

Phone Life-Time Technical Support

30-Day No Questions Return Policy

*Free Shipping within the USA

Contact an Expert

NOTE

Order Before 3:00pm EST on a week day and your order will be shipped out the same day

*Free shipping within the USA

Including Puerto Rico, Hawaii and Alaska

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
