What is the user capacity of the mini controller?

It supports up to 1,000 users (989 common users, 10 visitor users, and 1 authorized user).

Which readers are compatible?

It can be connected with any reader with Wiegand 26~37 bits output.

How do I program the VIS-MINI-CNTRL?

You use the infrared remote control that comes with it. Just point the remote at the "IR" window on the front of the unit and enter the programming codes. You always start by entering the Master Code followed by the # key.

Can I connect two of these units together?

Yes. Two VIS-MINI-CNTRL units can be linked to control two doors, and user information can be transferred from one unit (the "Master") to another (the "Slave"), as long as both units have the same Master Code.

1 Door controller for standalone keypad access control - VIS-MINI-CNTRL

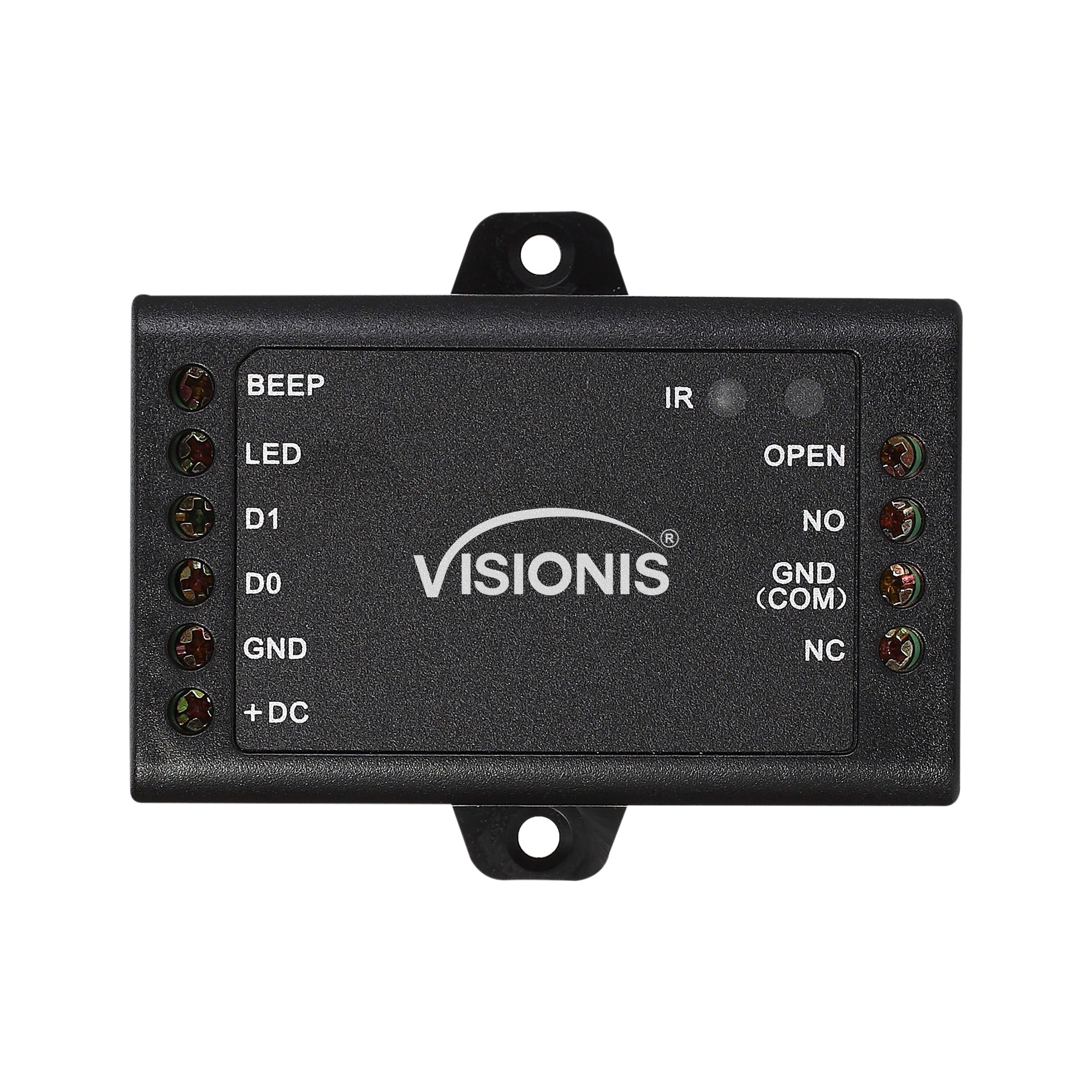

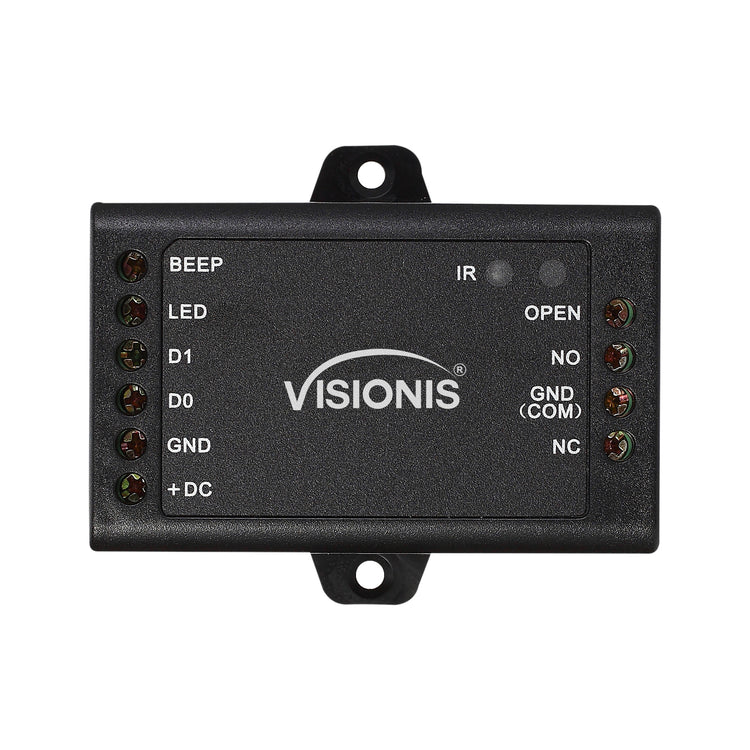

Compact Single Door Mini Controller for Access Control - VIS-MINI-CNTRL

Mini controller for wiegand standalone keypad access control - VIS-MINI-CNTRL

Mini controller for Wiegand card readers and keypads - VIS-MINI-CNTRL Visionis

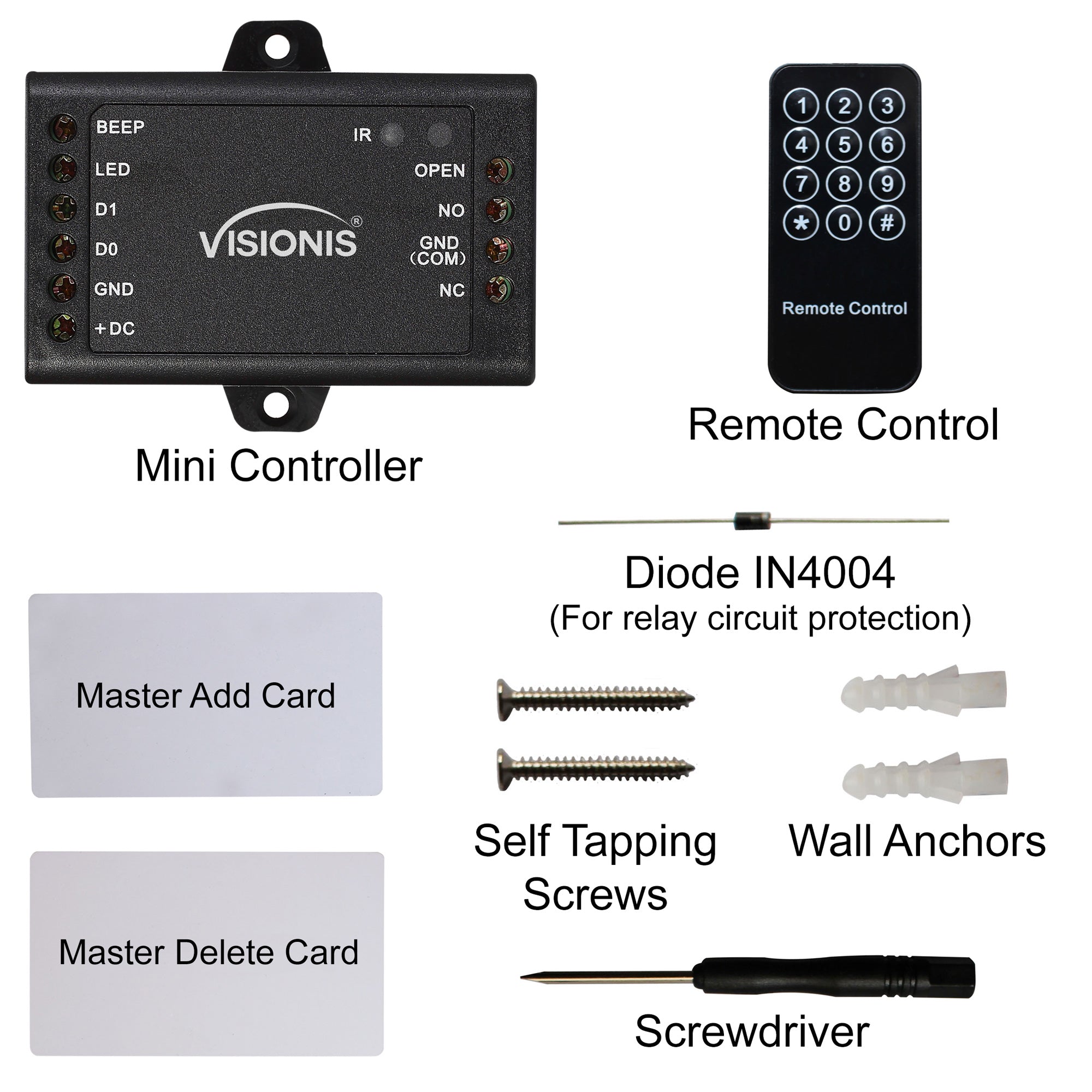

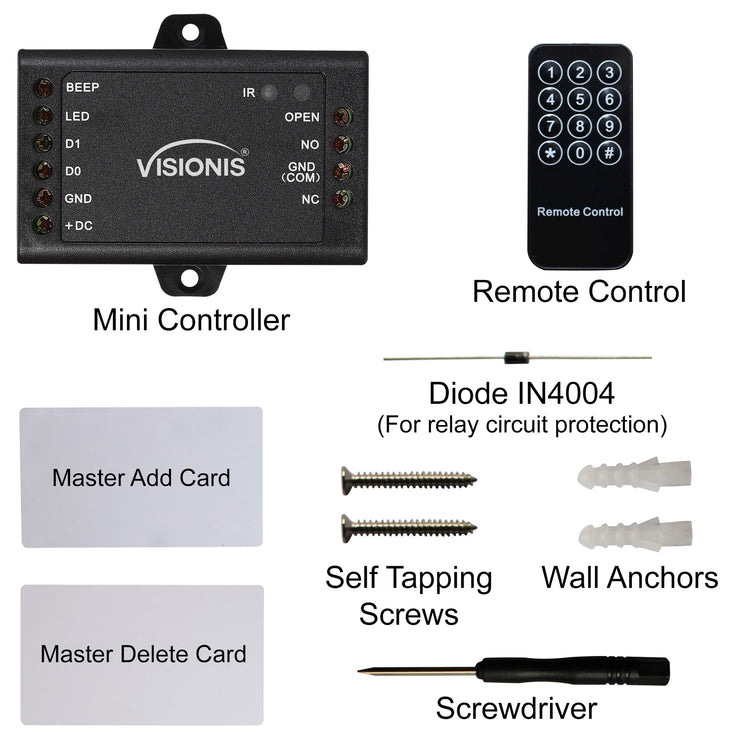

1 Door controller for standalone keypads. Items included in the box - VIS-MINI-CNTRL

1 door controller for stand alone card reader dimensions - VIS-MINI-CNTRL

Description

The VIS-MINI-CNTRL is a mini single door control panel, can work with any entry device Wiegand 26~37 bits output reader. Card type depends on the reader, example: EM, HID, and MFR card types. It uses Atmel microcontroller to assure stable performance and equips with an infrared remote control for easy operation. The VIS-MINI-CNTRL supports 1,000 users.

Features

User Capacity: 1,000
Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
Can connect with any reader with Wiegand 26~37 bits output
Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
Support Master Card function
Low temperature resistance (-40°C)

Important:

For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
If the Keypad/Card Reader (Entry Device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

Characteristics

Model No. VIS-MINI-CNTRL:

User Capacity: 1,000 (Common user: 989, Visitor user: 10, Authorized user: 1)
Operating Voltage: 12V DC
Idle Current: < 100mA
Active Current: < 150mA
Wiring Connections: Relay output, exit button, Wiegand input
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface: Wiegand 26~44, 56, 58 bits
Operating Humidity: Indoor
Environment: 0 ~ 90%RH
Physical: ABS Shell
Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight: 40g
Shipping Weight: 100g

Description

Features

User Capacity: 1,000
Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
Can connect with any reader with Wiegand 26~37 bits output
Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits virtual number output
Support Master Card function
Low temperature resistance (-40°C)

Important:

For better security the VIS-MINI-CNTRL needs to be installed inside the facility in a restricted area. This device becomes the hub of this standalone application and all the credentials are being stored on the device while no information is stored on the reader itself. Additional recommendations for added security is to add the controller within an enclosure.
If the Keypad/Card Reader (Entry Device) is tampered with, the door will remain locked. The mini controller is the one controlling and securing your locking device.
The VIS-MINI-CNTRL offers a more secure option to provide additional security to all type of standalone access control products.

Characteristics

Model No. VIS-MINI-CNTRL:

User Capacity: 1,000 (Common user: 989, Visitor user: 10, Authorized user: 1)
Operating Voltage: 12V DC
Idle Current: < 100mA
Active Current: < 150mA
Wiring Connections: Relay output, exit button, Wiegand input
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0~99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Wiegand Interface: Wiegand 26~44, 56, 58 bits
Operating Humidity: Indoor
Environment: 0 ~ 90%RH
Physical: ABS Shell
Dimensions: L65 x W54 x H19 (mm) - L2.56 x W2.13 x H0.75 (in.)
Unit Weight: 40g
Shipping Weight: 100g

Product FAQs

What is the user capacity of the mini controller?

It supports up to 1,000 users (989 common users, 10 visitor users, and 1 authorized user).
Which readers are compatible?

It can be connected with any reader with Wiegand 26~37 bits output.
How do I program the VIS-MINI-CNTRL?

You use the infrared remote control that comes with it. Just point the remote at the "IR" window on the front of the unit and enter the programming codes. You always start by entering the Master Code followed by the # key.
Can I connect two of these units together?

Yes. Two VIS-MINI-CNTRL units can be linked to control two doors, and user information can be transferred from one unit (the "Master") to another (the "Slave"), as long as both units have the same Master Code.
What is the default Master Code, and should I change it?

The default Master Code is 123456. Yes, you should change it right away for security. To do this, enter program mode, press 0, type your new 6-digit code, press #, then confirm by typing it again and pressing #.
What happens if someone keeps entering the wrong code or card?

If the "Strike-Out Alarm" feature is turned on, the system will lock out access after 10 failed attempts in a row. Depending on how it's set up, it can either block entry for 10 minutes or stay locked until a valid card, PIN, or the Master Code is entered.
Where should the mini controller be installed?

The VIS-MINI-CNTRL should be installed in a restricted, secure area inside the facility (such as inside an enclosure). Because credentials are saved on the controller rather than the external reader/keypad, tampering with the outside reader will not unlock the door.

Download Datasheets and Manuals of this product

VIS-MINI-CNTRL

Visionis by Visionis

5.0

Visionis VIS-MINI-CNTRL – 1 Door Controller For Access Control Systems With No Software. Up To 1,000 Users

UPC Code: 734598804947

Certifications:

⚡ Order before 2:00 PM EST on weekdays for same-day shipping

In Stock

Regular price: $27.41
Sale price: $27.41
Regular price

Shipping calculated at checkout.

Quantity:

Free US Shipping
To all 50 states

3 YEAR Warranty

30-Day Returns
No questions asked

Lifetime Phone Support
Mon–Fri 9am–6pm EST

ATTENTION:

Before purchasing, it is recommended that the customer checks with their local fire authority to see if there is any additional product they may need in order to comply with the local fire codes. We are not responsible for the improper installation of our product(s) or any type of fees that can be incurred by not complying with your local fire authority.
